Characteristics：

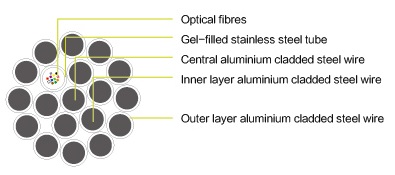

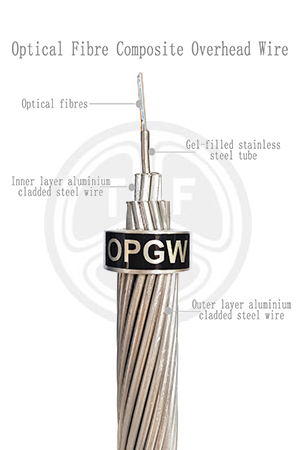

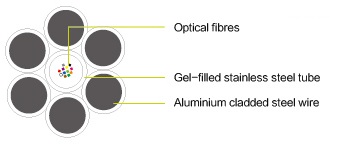

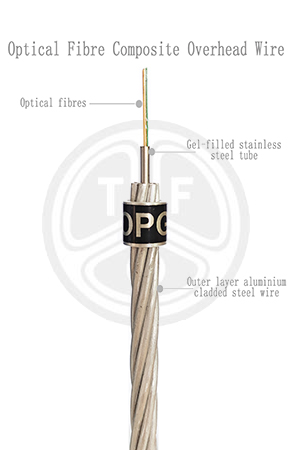

1. The stainless steel tube that houses the fibre has a high tensile strength and a high crush resistance in

order to provide an effective protection. The fibre is mechanically decoupled from other component parts of

the cable structure in all expected conditions of use. This ensures successful operation during the life

expectancy of the cable
2. TFO strives for compact and lightweight OPGW designs in order to reduce influences of wind and ice, and

to minimize loading of the towers of the power line grid
3. By protecting the opticing fibre using a gel filled stainless steel tube which has a high radial thermal

resistance, OPGW temperatures up to 300℃ can be allowed in a single phase short-circuit situation
4. TFO realizes high strength / small diameter OPGW designs by selecting the right type and size for the

aluminium cladded steel wires in the center of the structure
5. TFO strives for designs with properties that maximally approach those of conventional earth wires in

order to meet short-circuit requirements and to ensure secure operation of the power line circuit
Installation：Self-supporting aerial
Applications：Power line
Standards：DL/T 832/IEEE1138/IEC60794-4-10
